Product Summary

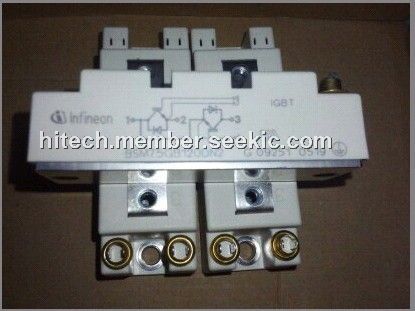

The BSM75GB120DN is an IGBT power module. It is a half-bridge module including fast free-wheeling diodes. It is package with insulated metal base plate, the package is half-bridge 1. When it concerned to the technical parameters, the collector-emitter voltage of the BSM75GB120DN is 1200V, the DC collector current is 105A.

Parametrics

BSM75GB120DN absolute maximum ratings:(1)Collector-emitter voltage, VCE: 1200V; (2)Collector-gate voltage, RGE = 20 kW, VCGR: 1200V; (3)Gate-emitter voltage, VGE, ±20A; (4)DC collector current, TC = 25 ℃, IC: 75A; (5)DC collector current, TC = 80 ℃, IC: 105A; (6)Pulsed collector current, tp = 1 ms, TC = 25 ℃, ICpuls: 210A; (7)Pulsed collector current, tp = 1 ms, TC = 80 ℃, ICpuls: 150A; (8)Power dissipation per IGBT, TC = 25 ℃, Ptot: 625W; (9)Chip temperature, Tj: +150℃; (10)Storage temperature, Tstg: -55 to +150℃; (11)Thermal resistance, chip case, RthJC, <0.2K/W; (12)Diode thermal resistance, chip case, RthJCD, <0.5K/W; (13)Insulation test voltage, t = 1min. Vis: 2500Vac; (14)Creepage distance: 20mm; (15)Clearance: 11mm; (16)DIN humidity category, DIN 40 040: F; (17)IEC climatic category, DIN IEC 68-1: 55 / 150 / 56.

Features

BSM75GB120DN features:(1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

BSM75GB120DN circuit diagram
