Product Summary

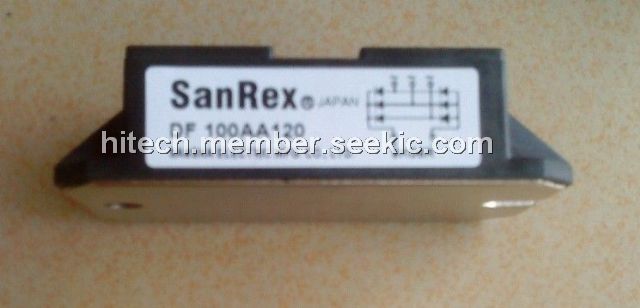

The DF100AA120 is a three phases bridge type diode. Power Diode Module DF100AA120 is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction. Output DC current of the DF100AA120 is 100Amp Repetitive peak reverse voltage is up to 1,600V.
Parametrics
DF100AA120 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 1200V; (2)VRSM, Non-Repetitive Peak Reverse Voltage: 1300V; (3)ID, Output Current when three phase full wave. TC 102℃: 100 A; (4)IFSM Surge Forward Current 1cycle, 50/60HZ, peak value, non-repetitive: 910/1000 A; (5)I2t I2t Value for one cycle of surge current: 4100 A2S.
Features
DF100AA120 features: (1)TjMax＝150℃; (2)Isolated mounting base; (3)High reliability by unique glass passivation.

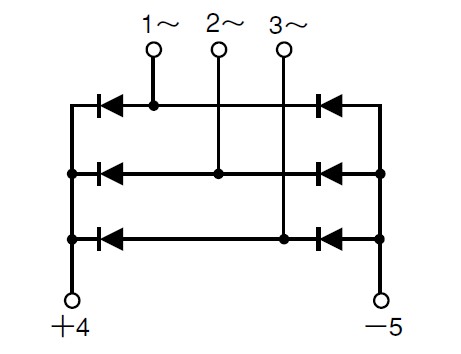

Diagrams
