Product Summary

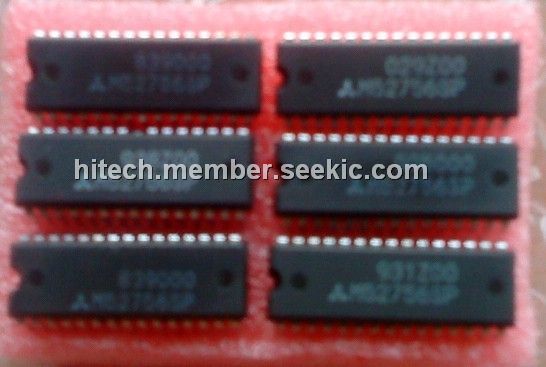

The M52756SP is a semiconductor integrated circuit for the RGBHV interface. The device features switching signals input from two types of image sources and outputting the signals to the CRT display, etc. Synchronous signals, meeting a frequency band of 10kHz to 200kHz, are output at TTL. The frequency band of video signals is 250MHz, acquiring highresolution images, and are optimum as an interface IC with high-resolution CRT display and various new media.
Parametrics
M52756SP absolute maximum ratings: (1)Supply voltage, Vcc: 6.0 to 13.0V; (2)Power dissipation, Pd: 1736mW; (3)Ambient temperature, Topr: -20 to +75℃; (4)Storage temperature, Tstg: -40 to +150℃; (5)Recommended supplyvoltage, Vopr: 5.0 to 12.0V; (6)Recommended sopply voltage range, Vopr: 4.75 to 5.25V; (7)Electrostatic discharge, Surge: ±150V.
Features
M52756SP features: (1)RGBOUT can drive connected load of 75W; (2)Only the G channel is provided with sync-on video output; (3)The TTL format is adopted for HV output; (4)It is possible to save the consumption current by stopping current supply to Pin 2, 4, 24, 27, 30; (5)Sync Separation circuit.

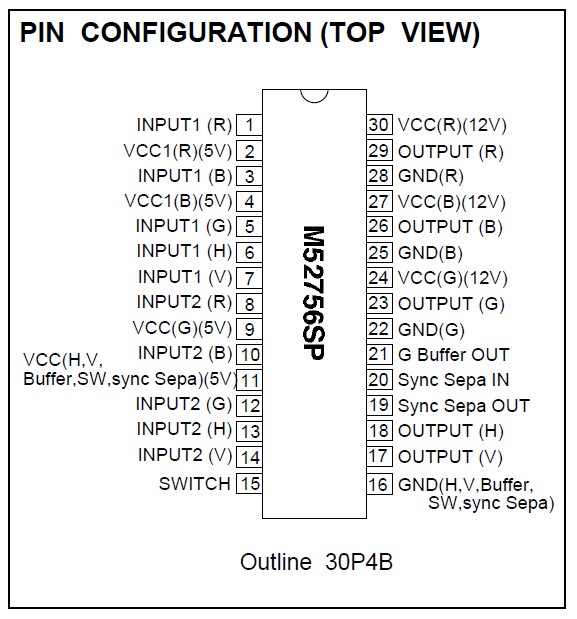

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M52756SP |
Other |
|
Data Sheet |
Negotiable |
|
||||||
