Product Summary

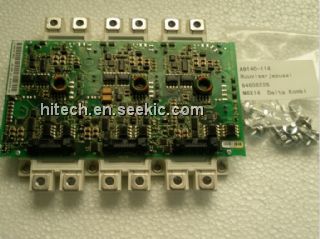

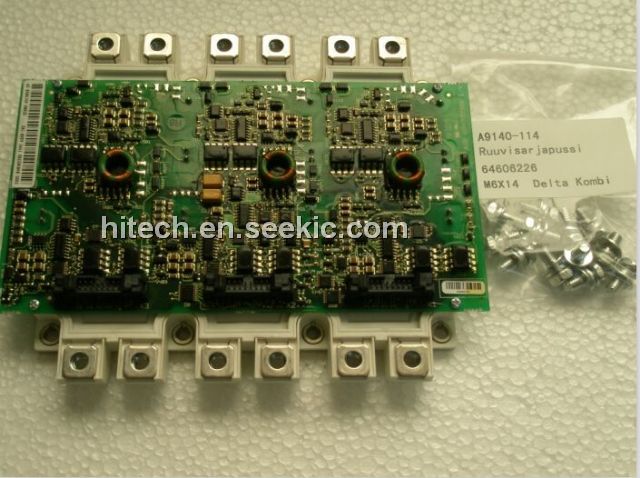

Always replace new IGBT control ribbon cables when replacing
new IGBT modules to the ACS800-02/04 single drive and
ACS/ACH550-02 drive.

Parametrics

IGBT control ribbon cables codes:
ACS800/550-X2/X4 R8 IGBT RIBBON CABLES 3pcs SP KIT:68689023
ACS800/550-X2/X4 R7 IGBT RIBBON CABLES 3pcs SP KIT:68689015
ACS800 Multidrive modules IGBT control ribbon cable codes:
R7i 400-690V 68869625
R8i 400-690V 2XIGBT 68870089
R8i 400-690V 3XIGBT 68692172
R7i LC 400-690V 3AUA0000031668
