Product Summary

Manufacturer: Infineon
Product Category: IGBT Modules
RoHS: No
Brand: Infineon Technologies
Product: IGBT Silicon Modules
Configuration: Dual Common Emitter Common Gate
Collector- Emitter Voltage VCEO Max: 1600 V
Collector-Emitter Saturation Voltage: 3.3 V
Continuous Collector Current at 25 C: 800 A
Gate-Emitter Leakage Current: 400 nA
Power Dissipation: 6.25 kW
Maximum Operating Temperature: + 125 C
Package / Case: IHM130
Maximum Gate Emitter Voltage: +/- 20 V
Minimum Operating Temperature: - 40 C
Mounting Style: SMD/SMT
Factory Pack Quantity: 8

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

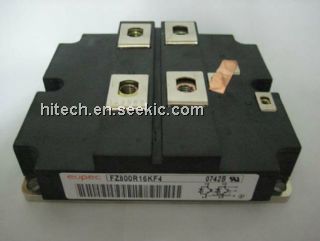

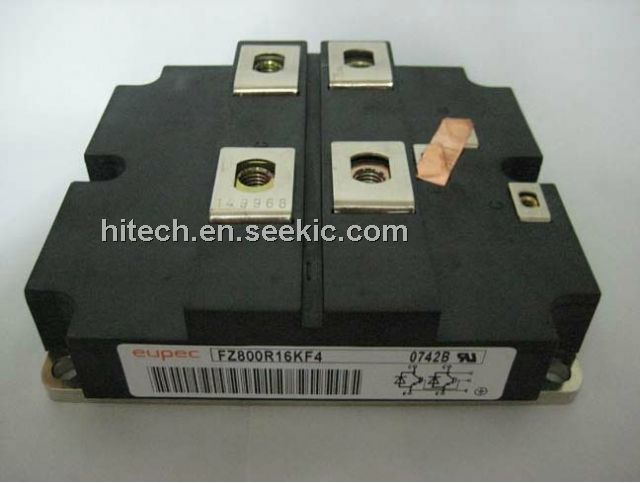

FZ800R16KF4
FZ800R16KF4
Infineon Technologies
IGBT Modules 1600V 800A SINGLE
Data Sheet
0-2: $462.20
2-3: $416.35
3-5: $370.09
5-10: $346.96
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ800R12KE3
FZ800R12KE3
Infineon Technologies
IGBT Modules 1200V 800A
Data Sheet
0-6: $132.64
6-10: $119.36
FZ800R12KF4
FZ800R12KF4
Infineon Technologies
IGBT Modules 1200V 800A SINGLE
Data Sheet
0-2: $358.98
2-3: $323.08
3-5: $287.19
5-10: $274.90
FZ800R12KF5
FZ800R12KF5
Infineon Technologies
IGBT Modules
Data Sheet
0-2: $555.60
2-10: $501.00
FZ800R12KL4C
FZ800R12KL4C
Infineon Technologies
IGBT Modules 1200V 800A SINGLE
Data Sheet
0-1: $358.67
1-3: $322.24
3-5: $286.43
5-10: $268.53
FZ800R12KS4_B2
FZ800R12KS4_B2
Infineon Technologies
IGBT Modules N-CH 1.2KV 1.2KA
Data Sheet
0-2: $549.91
2-10: $494.90
FZ800R16KF4
FZ800R16KF4
Infineon Technologies
IGBT Modules 1600V 800A SINGLE
Data Sheet
0-2: $462.20
2-3: $416.35
3-5: $370.09
5-10: $346.96
