Product Summary
The 2SA1744 is a power transistor developed for high-speed switching and features a high hFE at Low VCE(sat). This transistor is ideal for use as a driver in DC/DC converters and actuators. In addition, a small resin-molded insulation type package contributes to high-density mounting and reduction of mounting cost.
Parametrics
2SA1744 absolute maximum ratings: (1)Collector to base voltage VCBO: -100 V; (2)Collector to emitter voltage VCEO: -60 V; (3)Emitter to base voltage VEBO: -7.0 V; (4)Collector current (DC) IC(DC): -15 A; (5)Collector current (pulse) IC(pulse): -30 A; (6)Base current (DC) IB(DC): -7.5 A; (7)Total power dissipation PT (Tc = 25℃): 30 W; (8)Total power dissipation PT (Ta = 25℃): 2.0 W; (9)Junction temperature Tj: 150 ℃; (10)Storage temperature Tstg: -55 to +150 ℃.
Features
2SA1744 features: (1)High hFE and low VCE(sat): hFE -100 (VCE = -2 V, IC = -3 A). VCE(sat) -0.3 V (IC = -8 A, IB = -0.4 A); (2)Full-mold package that does not require an insulating board or bushing.

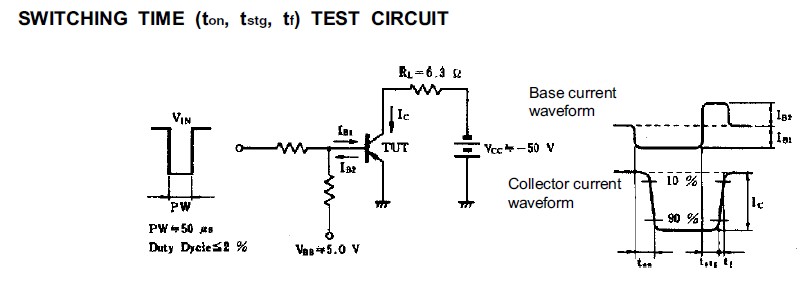

Diagrams
 |
