Product Summary

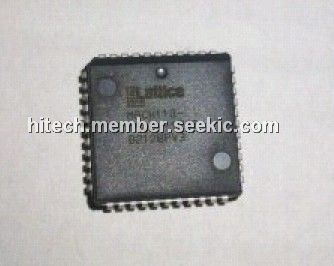

The MACH110-15JC is a member of our high-performance EE CMOS MACH 1 family. The MACH110-15JC has approximately three times the logic macrocell capability of the popular PAL22V10 without loss of speed.

Parametrics

MACH110-15JC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature With Power Applied: –55℃ to +125℃; (3)Supply Voltage with Respect to Ground: –0.5V to +7.0V; (4)DC Input Voltage: –0.5V to VCC+0.5V; (5)DC Output or I/O Pin Voltage: –0.5V to VCC+0.5V; (6)Static Discharge Voltage: 2001V; (7)Latchup Current(TA = 0℃ to 70℃): 200 mA.

Features

MACH110-15JC features: (1)44 Pins; (2)32 Macrocells; (3)12 ns tPD Commercial; (4)14 ns tPD Industrial; (5)77 MHz fCNT; (6)38 Inputs; (7)32 Outputs; (8)32 Flip-flops; 2 clock choices.

Diagrams

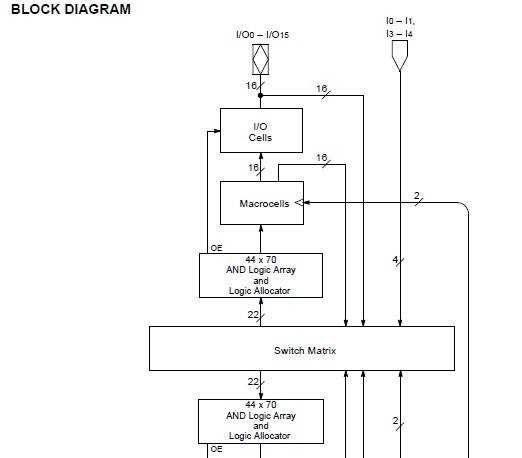

MACH110-15JC block diagram
