Product Summary
The UDN2982LW is a 8-channel source driver. Recommended for high-side switching applications that benefit from separate logic and load grounds, the UDN2982LW encompass load supply voltages to 50 V and output currents to -500 mA. The 8-channel source driver UDN2982LW is useful for interfacing between low-level logic and high-current loads. Typical load includes relay, solenoid, lamp, stepper and/or servo motor, print hammer, and LED. The device may be used with 5 V logic systems — TTL, Schottky TTL, DTL, and 5 V CMOS. The UDN2982LW is electrically interchangeable, will withstand a maximum output off voltage of 50 V, and operate to a minimum of 5 V. The device in this series integrate input current limiting resistor and output transient suppression diode and is activated by an active high input.
Parametrics
UDN2982LW absolute maximum ratings: (1)Output Voltage Range, VCE: 5 V to 50 V; (2)Input Voltage, VIN: 15 V; (3)Output Current, IOUT: -500 mA; (4)Package Power Dissipation, PD: See Graph; (5)Operating Temperature Range, TA: -20℃ to +85℃; (6)Storage Temperature Range, TS: -55℃ to +150℃.
Features
UDN2982LW features: (1)TTL, DTL, PMOS, or CMOS Compatible Inputs; (2)500 mA Output Source Current Capability; (3)Transient-Protected Outputs; (4)Output Breakdown Voltage to 50 V; (5)DIP or SOIC Packaging.

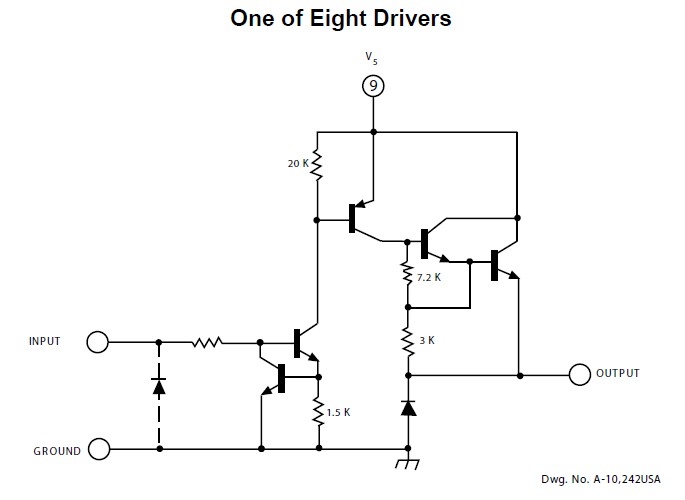

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 UDN2982LW |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
Negotiable |
|
||||
|
UDN2982LW-T |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
Negotiable |
|
||||
|
UDN2982LWTR |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
Negotiable |
|
||||
|
UDN2982LWTR-T |
|
IC SOURCE DRIVER 8CHAN 20-SOIC |
Data Sheet |
Negotiable |
|
||||
