Product Summary

The 6MBI15GS-060 is an IGBT (600V 15A) for high Power Switching, A.C. Motor Controls, D.C. Motor Controls.

Parametrics

6MBI15GS-060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600 V; (2)Gate -Emitter Voltage, VGES: ± 20 V; (3)Collector Current: Continuous, IC: 15A; 1ms, IC PULSE: 30A; Continuous, -IC: 15A; 1ms, -IC PULSE: 30A; (4)Max. Power Dissipation, PC: 60 W; (5)Operating Temperature, Tj: +150 ℃; (6)Storage Temperature, Tstg: -40 ~ +125 ℃; (7)Isolation Voltage, A.C. 1min. Vis: 2000 V; (8)Screw Torque, Mounting: 1.7 Nm.

Features

6MBI15GS-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Improved FWD Characteristic; (4)Minimized Internal Stray Inductance.

Diagrams

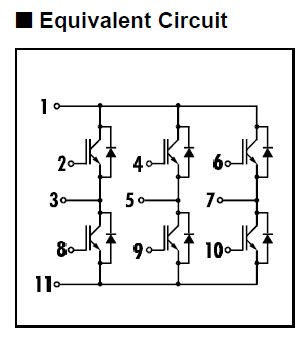

6MBI15GS-060 Equivalent Circuit
