Product Summary

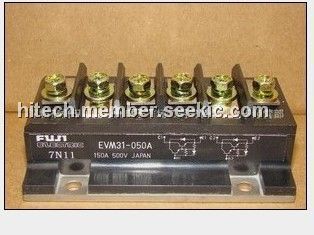

The EVM31-050A is a power transistor module. The applications of it are power switching, AC motor controls, DC motor controls, uninterruptible power supply.
Parametrics
EVM31-050A absolute maximum ratings: (1)VCBO:600V; (2)VCEO:600V; (3)VCEO(SUS):450V; (4)VEBO:6V; (5)IC:150A; (6)ICP:300A; (7)-IC:150A; (8)IB:9A; (9)IBP:18A; (10)PC:600W; (11)Tj:150℃; (12)Tstg:-40 to +125℃.
Features
EVM31-050A features: (1)including free wheeling diode; (2)high DC current gain; (3)insulated type.
Diagrams
 |
