Product Summary

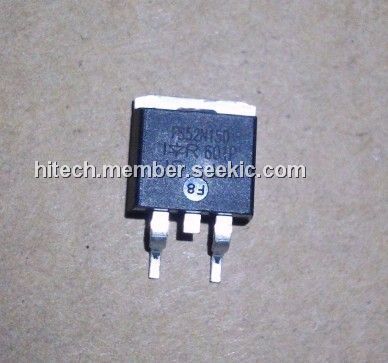

The IRFS52N15D is a SMPS MOSFET. It is suitable for High frequency DC-DC converters.

Parametrics

IRFS52N15D absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 60A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 43 A; (3)IDM, Pulsed Drain Current: 240A; (4)PD, @TA = 25℃ Power Dissipation: 3.8 W; (5)PD @TC = 25℃ Power Dissipation: 320W; (6)Linear Derating Factor: 2.1 W/℃; (7)VGS, Gate-to-Source Voltage: ± 30 V; (8)dv/dt, Peak Diode Recovery dv/dt: 5.5 V/ns; (9)TJ, TSTG,Operating Junction and Storage Temperature Range: -55 to + 175℃.

Features

IRFS52N15D features: (1)Low Gate-to-Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design; (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

IRFS52N15D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFS52N15D
IRFS52N15D

Other


Data Sheet

Negotiable
IRFS52N15DPBF
IRFS52N15DPBF

International Rectifier

MOSFET

Data Sheet

0-240: $1.46
240-250: $1.40
250-500: $1.34
500-1000: $1.28
IRFS52N15DTRLP
IRFS52N15DTRLP

International Rectifier

MOSFET MOSFT 150V 60A 32mOhm 60nC

Data Sheet

0-1: $3.65
1-25: $2.50
25-100: $1.86
100-250: $1.78
IRFS52N15DTRRP
IRFS52N15DTRRP

International Rectifier

MOSFET

Data Sheet

0-620: $1.13
620-800: $1.13
