Product Summary

The MAX232CPE+ is line drivers/receivers which intended for all EIA/TIA-232E and V.28/V.24

http://www.componentsindustry.com/

Hi-tech (HK) Electronics Co.,Ltd

Parametrics

MAX232CPE+ absolute Maximum Ratings: (1)Output Voltage Swing, when the operation condition is All transmitter outputs loaded with 3kV to GND: -5 to +8V; (2)Input Logic Threshold Low, All devices except MAX220: 1.4 to 0.8V; (3)Logic Pullup/lnput Current, when the operation condition is SHDN = 0V, MAX222/MAX242, shutdown, MAX220: -1μA(the tye is _0.01 ); (4)Output Leakage Current, when the operation condition is VCC = 5.5V, SHDN = 0V, VOUT = -15V, MAX222/MAX242: +10μA(the tye is -0.01 ); (5)Transmitter Output Resistance, when the operation condition is VCC = V+ = V- = 0V, VOUT = -2V: 300V; (6)Output Short-Circuit Current, when the operation condition is VOUT = 0V: the min valve is -7 mA.

Features

MAX232CPE+ features: (1)Low-power shutdown; (2)MAX241 and receivers active in shutdown; (3)Available in SO; (4)5 drivers with shutdown; (5)Standard +5/+12V or battery supplies; (6)same functions as MAX232; (7)Industry standard; (8)Higher slew rate, small caps; (9)No external caps; (10)No external caps, high slew rate.

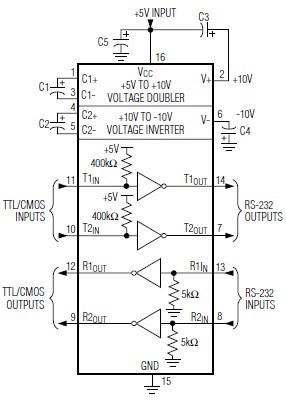

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX232CPE+
MAX232CPE+
Maxim Integrated Products
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver
Data Sheet
0-1: $2.32
1-25: $1.55
25-50: $1.12
50-100: $1.12
