Product Summary
The LMX9820ASM/NOPB is a Bluetooth Serial Port Module. It is a highly integrated radio, baseband controller, and memory device implemented on an FR4 substrate. The LMX9820ASM/NOPB features a small form factor (10.1 x 14.1 x 2.0 mm) design, which solves many of the challenges associated with compact system integration. The applications of the LMX9820ASM/NOPB are Personal Digital Assistants, POS Terminals, Data Logging Systems, Audio Gateway applications.
Parametrics
LMX9820ASM/NOPB absolute maximum ratings: (1)Core Logic Power Supply Voltage:-0.3 to 4.0V; (2)I/O Power Supply Voltage:-0.3 to 4.0V; (3)USB Power Supply Voltage:-0.5 to 3.63V; (4)Voltage on any pad with GND = 0V:-0.5 to 3.6V; (5)RF Input Power:+15dBm; (6)Storage Temperature Range:-65℃ to +125℃; (7)Lead Temperature (solder 4 sec):+235℃; (8)ESD, Human Body Model:2000V; (9)ESD, Machine Model:200V.
Features
LMX9820ASM/NOPB features: (1)Bluetooth version 1.1 qualified; (2)Implemented in CMOS technology on FR4 substrate; (3)Temperature Range: -40℃ to +85℃; (4)FCC certified on LMX9820ADONGLE, FCC ID ED9LMX9820ASM.

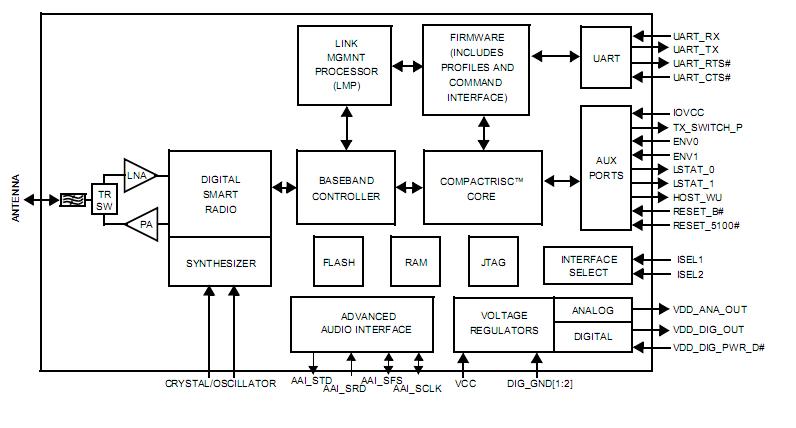

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMX9820ASM/NOPB |
|
IC MODULE BLUETOOTH 116-LTCC |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
LMX9820A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
LMX9820ASM/NOPB |
|
IC MODULE BLUETOOTH 116-LTCC |
Data Sheet |
Negotiable |
|
||||||||||||
|
LMX9820ASMX/NOPB |
|
MODULE BLUETOOTH SERIAL PORT SMD |
Data Sheet |
Negotiable |
|
||||||||||||
|
LMX9820SB |
|
MODULE BLUE TOOTH 116-LTCC |
Data Sheet |
Negotiable |
|
||||||||||||
|
LMX9830DONGLE |
National Semiconductor (TI) |
Bluetooth / 802.15.1 Development Tools LMX9830 BLUETOOTH EVAL KIT |
Data Sheet |
|
|
||||||||||||
 |
LMX9830SM/NOPB |
National Semiconductor (TI) |
Bluetooth |
Data Sheet |
|
|
||||||||||||
