Product Summary

The D45H11 is a PNP power amplifier. The D45H11 is a silicon multiepitaxial planar PNP transistor mounted in Jedec TO-220 plastic package. It is inteded for various switching and general purpose applications.

Parametrics

D45H11 absolute maximum ratings: (1)VCEO Collector-Emitter Voltage (IB = 0): -80 V; (2)VEBO Emitter-Base Voltage (IC = 0): -5 V; (3)IC Collector Current: -10 A; (4)ICM Collector Peak Current: -20 A; (5)IB Base Current: -5 A; (6)Ptot Total Dissipation at Tc≤ 25 ℃: 50 W; (7)Tstg Storage Temperature: -65 to 150 ℃; (8)Tj Max. Operating Junction Temperature: 150 ℃.

Features

D45H11 features: (1)STM preferred salestypes; (2)Low collector-emitter saturation voltage; (3)Fast switching speed.

Diagrams

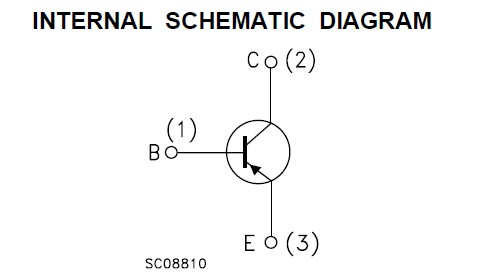

D45H11 internal schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

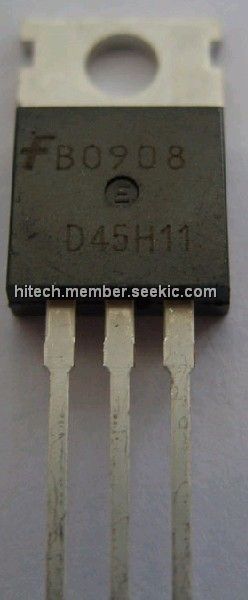

D45H11
D45H11

Fairchild Semiconductor

Transistors Bipolar (BJT) BP PNP Pwr Switching Transistor

Data Sheet

0-1: $0.53
1-25: $0.44
25-100: $0.36
100-250: $0.27
D45H11FP
D45H11FP

STMicroelectronics

Transistors Bipolar (BJT) PNP GEN PUR SWITCH

Data Sheet

0-800: $0.41
800-1000: $0.41
D45H11G
D45H11G

ON Semiconductor

Transistors Bipolar (BJT) 10A 80V 50W PNP

Data Sheet

0-1: $0.59
1-25: $0.49
25-100: $0.37
100-500: $0.31
D45H11J3
D45H11J3

Other


Data Sheet

Negotiable
