Product Summary
The MRF2628 is a RF power transistor. It is designed for 12.5 volt VHF large-signal power amplifiers in commercial and industrial FM equipment.
Parametrics
MRF2628 absolute maximum ratings: (1)Collector–Emitter Voltage, VCEO: 18 Vdc; (2)Collector–Base Voltage, VCBO: 36 Vdc; (3)Emitter–Base Voltage, VEBO: 4.0 Vdc; (4)Storage Temperature Range, Tstg: –65 to +150℃; (5)Junction Temperature, TJ: 200℃.
Features
MRF2628 features: (1)designed for 12.5 volt VHF large signal power amplifiers in commercial and industrial FM equipment; (2)Compact .280 Stud Package; (3)Specified 12.5 V, 175 MHz Performance: Output Power = 15 Watts; Power Gain = 12 dB Min; Efficiency = 60% Min; (4)Characterized to 220 MHz; (5)Load Mismatch Capability at High Line and Overdrive.

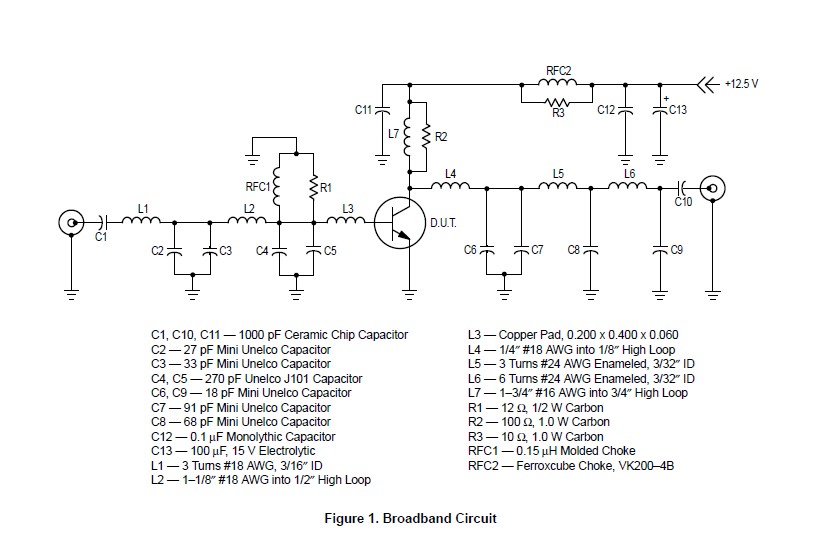

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF2628 |
Other |
|
Data Sheet |
Negotiable |
|
||||
