Product Summary

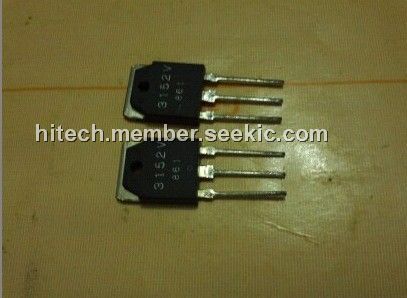

The SI3152V is 3-terminal, low dropout voltage dropper type.
Parametrics
SI3152V absolute maximum ratings: (1)DC Input Voltage VIN: 2.0V; (2)DC Output Current IO: 50(TC=25℃)A; (3)Power Dissipation PD1: 1.6(Without heatsink, stand-alone operation)W; (4)Junction Temperature Tj: –30 to +125℃; (5)Ambient Operating Temperature Top: –20 to +100℃; (6)Storage Temperature Tstg: –30 to +125℃; (7)Thermal Resistance (junction to case) Rth(j-c): 2.0℃/W.
Features
SI3152V features: (1)TO-3P package 3-terminal regulator; (2)Output current: 2.0A; (3)Low dropout voltage: VDIFV (at IO=2.0A); (4)Built-in foldback overcurrent protection circuit.

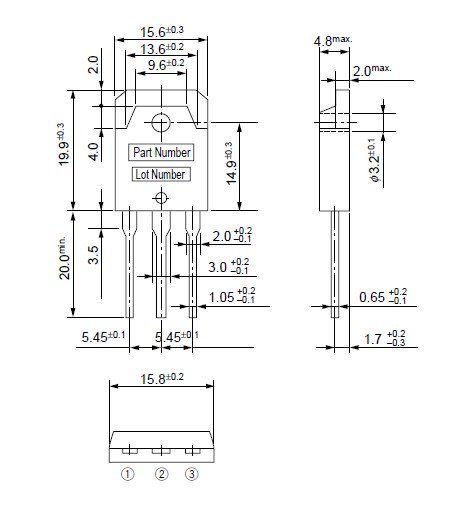

Diagrams
