Product Summary
The ADC0804LCN is a 8-bit uP compatible A/D converter. The ADC0804LCN is a CMOS 8-bit successive approximation A/D converter that uses a differential potentiometric ladder similar to the 256R products. The converter is designed to allow operation with the NSC800 and INS8080A derivative control bus with TRI-STATE output latches directly driving the data bus. The A/D appear like memory locations or I/O ports to the microprocessor and no interfacing logic is needed. Differential analog voltage input allows increasing the common-mode rejection and offsetting the analog zero input voltage value. In addition, the voltage reference input can be adjusted to allow encoding any smaller analog voltage span to the full 8 bits of resolution.
Parametrics
ADC0804LCN absolute maximum ratings: (1)Supply Voltage (VCC) (Note 3) 6.5V; (2)Voltage Logic Control Inputs -0.3V to +18V; (3)At Other Input and Outputs -0.3V to (VCC+0.3V); (4)Lead Temp Dual-In-Line Package (plastic) 260℃; (5)Dual-In-Line Package (ceramic) 300℃; (6)Surface Mount Package Vapor Phase (60 seconds) 215℃.
Features
ADC0804LCN features: (1)Differential analog voltage inputs; (2)Logic inputs and outputs meet both MOS and TTL voltage level specifications; (3)Works with 2.5V (LM336) voltage reference; (4)On-chip clock generator; (5)0V to 5V analog input voltage range with single 5V supply; (6)No zero adjust required; (7)0.3" standard width 20-piDIP package; (8)20-pimolded chip carrier or small outline package; (9)Operates ratiometrically or with 5 VDC, 2.5 VDC, or analog spaadjusted voltage reference.

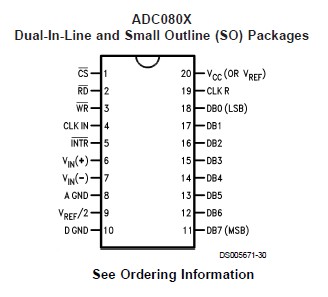

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADC0804LCN |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
|
ADC0804LCN/NOPB |
National Semiconductor (TI) |
ADC (A/D Converters) 8B UP COMPATIBLE ADC |
Data Sheet |
|
|
||||||||||||
