Product Summary

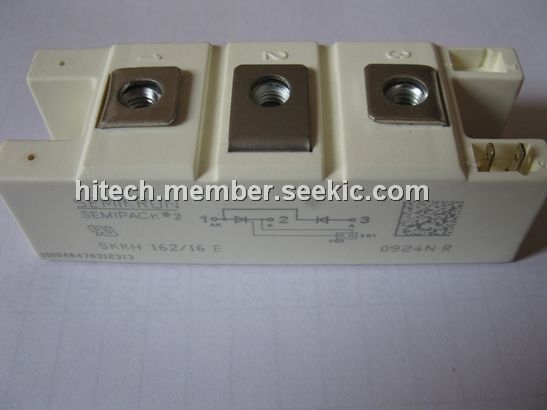

The SKKH162/16E is a diode module. The applications of it are DC motor control, temperature control and professional light dimming.

Parametrics

General specifications: (1)(di/dt)cr(Tvj=125℃ max.200A/μs; (2)(dv/dt)cr(Tvj=125℃ max.1000V/μs; (3)tq(Tvj=125℃ 50μs to 150μs; (4)VGT:min.2V; (5)IGT:min.150mA; (6)VGD:max.0.25V; (7)IGD:max.10mA.

Features

Features: (1)heater transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E63532.

Diagrams
