Product Summary

The MC145026P is a encoder/decoder pair in remote control applications. The MC145026P encodes nine lines of information and serially sends this information upon receipt of a transmit enable (TE) signal. The nine lines may be encoded with trinary data (low, high, or open) or binary data (low or high). The words of the MC145026P are transmitted twice per encoding sequence to increase security.

Parametrics

MC145026P absolute maximum ratings: (1)DC Supply Voltage (except SC41343, SC41344): – 0.5 to + 18 V; (2)DC Supply Voltage (SC41343, SC41344 only): – 0.5 to + 10 V; (3)DC Input Voltage: – 0.5 to VDD + 0.5 V; (4)DC Output Voltage: – 0.5 to VDD + 0.5 V; (5)DC Input Current, per Pin: ± 10 mA; (6)DC Output Current, per Pin: ± 10 mA; (7)Power Dissipation, per Package: 500 mW; (8)Storage Temperature: – 65 to + 150 ℃; (9)Lead Temperature, 1 mm from Case for 10 Seconds: 260 ℃.

Features

MC145026P features: (1)Operating Temperature Range: -40 to + 85℃; (2)Very-Low Standby Current for the Encoder: 300 nA Maximum @ 25℃; (3)Interfaces with RF, Ultrasonic, or Infrared Modulators and Demodulators; (4)RC Oscillator, No Crystal Required; (5)High External Component Tolerance; Can Use ±5% Components; (6)Internal Power-On Reset Forces All Decoder Outputs Low; (7)Operating Voltage Range: MC145026 = 2.5 to 18 V*, MC145027, MC145028 = 4.5 to 18 V.

Diagrams

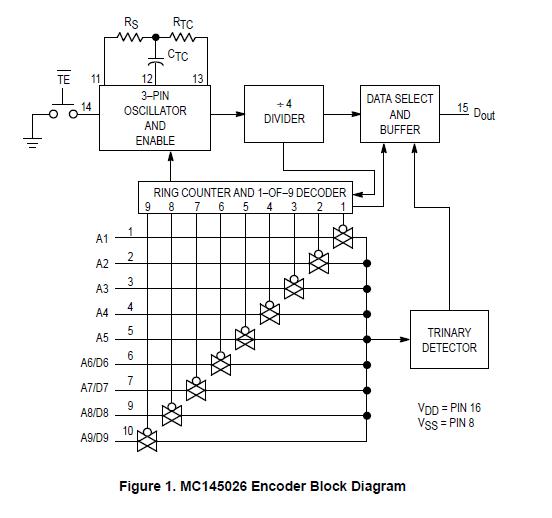

MC145026P block diagram
