Product Summary
The AD623AN is an integrated single supply instrumentation amplifier that delivers rail-to-rail output swing on a single supply (+3 V to +12 V supplies). It offers superior user flexibility by allowing single gain set resistor programming, and conforming to the 8-lead industry standard pinout configuration. With no external resistor, it is configured for unity gain (G = 1) and with an external resistor, the AD623 can be programmed for gains up to 1,000.
Parametrics
Absolute maximum ratings: (1)Supply Voltage: ±6 V; (2)Internal Power Dissipation: 650 mW; (3)Differential Input Voltage: ±6 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range (N, R, RM): –65℃ to +125℃; (6)Operating Temperature Range (A): –40℃ to +85℃; (7)lead temperature ranges (Soldering 10 seconds): +300℃.
Features
Fatures: (1)Easy to Use; (2)Higher Performance than Discrete Design; (3)Single and Dual Supply Operation; (4)Rail-to-Rail Output Swing; (5)Input Voltage Range Extends 150 mV Below Ground (Single Supply); (6)Low Power, 575 mA Max Supply Current; (7)Gain Set with One External Resistor; (8)Gain Range 1 (No Resistor) to 1,000.

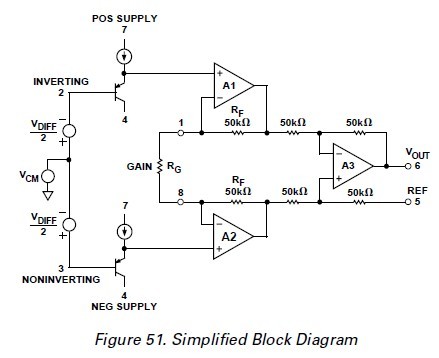

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

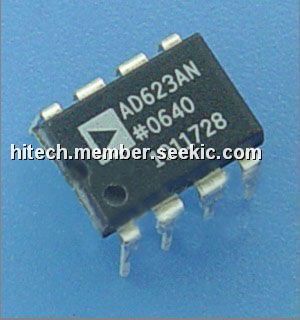

AD623AN |
Analog Devices Inc |
IC INSTR AMP R-R OUT 8-DIP |
Data Sheet |
|
|
|||||||||||||||||||||
AD623ANZ |
IC AMP INST R-R LP 8DIP |
Data Sheet |
|
|
