Product Summary

The MAX3232CSE+ transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232

http://www.componentsindustry.com/

Hi-tech (HK) Electronics Co.,Ltd

Parametrics

Absolute Maximum Ratings: (1)VCC: -0.3V to +6V; (2)V+ (Note 1): -0.3V to +7V; (3)V- (Note 1): +0.3V to -7V; (4)V+ + V- (Note 1): +13V; (5)Input Voltages; (6)T_IN, SHDN, EN: -0.3V to +6V; (7)MBAUD: -0.3V to (VCC + 0.3V); (8)R_IN: ±25V; (9)Output Voltages; (10)T_OUT: ±13.2V; (11)R_OUT: -0.3V to (VCC + 0.3V); (12)Short-Circuit Duration; (13)16-Pin Plastic DIP (derate 10.53mW/°C above +70°C): 842mW; (14)16-Pin Narrow SO (derate 8.70mW/°C above +70°C): 696mW; (15)16-Pin Wide SO (derate 9.52mW/°C above +70°C): 762mW; (16)18-Pin Plastic DIP (derate 11.11mW/°C above +70°C): 889mW; (17)18-Pin SO (derate 9.52mW/°C above +70°C): 762mW; (18)20-Pin SSOP (derate 8.00mW/°C above +70°C): 640mW; (19)28-Pin SO (derate 12.50mW/°C above +70°C): 1W; (20)28-Pin SSOP (derate 9.52mW/°C above +70°C): 762mW; (21)Operating Temperature Ranges of MAX32_ _C_ _: 0°C to +70°C; (22)Operating Temperature Ranges of MAX32_ _E_ _ : -40°C to +85°C; (23)Storage Temperature Range: -65°C to +150°C; (24)Lead Temperature (soldering, 10sec): +300°C.

Features

Features: (1)ALow Supply Current:300μA (MAX3222/MAX3232/MAX3241), 500μA (MAX3237); (2)Guaranteed Data Rate:120kbps (MAX3222/ MAX3232/ MAX3241), 250kbps (MAX3237—Normal Operation), 1Mbps (MAX3237—MegaBaud Operation); (3)1μA Low-Power Shutdown with Receivers Active (MAX3222/MAX3237/MAX3241); (4)Flow-Through Pinout (MAX3237) Meets EIA/TIA-232 Specifications Down to 3.0V; (5)Guaranteed Mouse Driveability (MAX3241); (6)Pin Compatible with Industry-Standard MAX232 (MAX3232); (7)Pin Compatible with Industry-Standard MAX242 (MAX3222); (8)Guaranteed Slew Rate:6V/μs (MAX3222/MAX3232/MAX3237/MAX3241), 24V/μs (MAX3237—MegaBaud Operation)

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

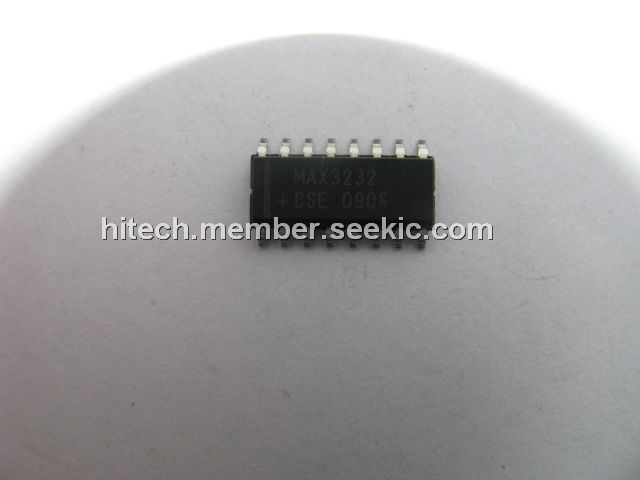

MAX3232CSE+
MAX3232CSE+
Maxim Integrated Products
RS-232 Interface IC 3-5.5V 1Mbps Transceiver
Data Sheet
0-1: $2.93
1-25: $1.95
25-50: $1.42
50-250: $1.39
MAX3232CSE+T
MAX3232CSE+T
Maxim Integrated Products
RS-232 Interface IC 3-5.5V 1Mbps Transceiver
Data Sheet
0-1: $2.68
1-25: $1.79
25-50: $1.46
50-250: $1.43
