Product Summary

The LQM2MPN2R2NG0L is a power chip inductor (Chip Coil) of multilayer type.

Parametrics

LQM2MPN2R2NG0L absolute maximum ratings: (1)Inductance: 2.2μH; (2)Tolerance: ±30%; (3)Test Frequency: 1MHz; (4)Rated Current: 1200mA; (5)Max. of DC resistance: 0.138ohm; (6)Avg. of DC resistance: 0.11ohm ±25%Q (min.); (7)Self Resonance Frequency (min.): 40MHz; (8)Size Code (in mm): 2016; (9)Size Code (in inch): 0806; (10)Length: 2.0mm; (11)Width: 1.6mm; (12)Thickness: 0.9mm; (13)Mass (Typ.): 0.012g; (14)Class of Magnetic Shield: Magnetic shield of ferrite; (15)Operating Temperature Range: -55 to +125℃.

Features

LQM2MPN2R2NG0L features: (1)Manufacturer: Murata; (2)Product Category: Power Inductors; (3)RoHS: Details; (4)Shielding: Shielded; (5)Termination Style: SMD/SMT; (6)Packaging: Reel.

Diagrams

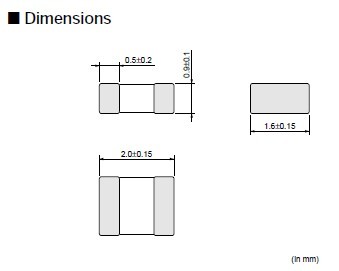

LQM2MPN2R2NG0L Dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQM2MPN2R2NG0L
LQM2MPN2R2NG0L
Murata
Power Inductors 1008 2.2uH 30%
Data Sheet
0-1: $0.19
1-50: $0.17
50-100: $0.16
100-500: $0.13
