Product Summary

The ADE7756AN is a high-accuracy electrical power measurement IC with a serial interface and a pulse output. The ADE7756AN incorporates two second-order sigma-delta ADCs, reference circuitry, temperature sensor, and all the signal processing required to perform active power and energy measurement. The ADE7756AN contains a sampled Waveform register and an Active Energy register capable of holding at least five seconds of accumulated power at full load.

Parametrics

ADE7756AN absolute maximum ratings: (1)AVDD to AGND: –0.3 V to +7 V; (2)DVDD to DGND: –0.3 V to +7 V; (3)DVDD to AVDD: –0.3 V to +0.3 V; (4)Analog Input Voltage to AGND; (5)V1P, V1N, V2P and V2N: –6 V to +6 V; (6)Reference Input Voltage to AGND: –0.3 V to AVDD + 0.3 V; (7)Digital Input Voltage to DGND: –0.3 V to DVDD + 0.3 V; (8)Digital Output Voltage to DGND: –0.3 V to DVDD + 0.3 V; (9)Operating Temperature Range. Industrial (A, B Versions): –40℃ to +85℃; (10)Storage Temperature Range: –65℃ to +150℃; (11)Junction Temperature: 150℃; (12)20-Lead Plastic DIP, Power Dissipation: 450 mW; (13)θJA Thermal Impedance: 105℃/W; (14)Lead Temperature, (Soldering 10 sec): 260℃; (15)20-Lead SSOP, Power Dissipation: 450 mW; (16)θJA Thermal Impedance: 112℃/W.

Features

ADE7756AN features: (1)High Accuracy, Supports IEC 687/1036; (2)Less than 0.1% Error over a Dynamic Range of 1000 to 1; (3)An On-Chip User Programmable Threshold for Line Voltage SAG Detection and PSU Supervisory; (4)Digital Power, Phase and Input Offset Calibration; (5)An On-Chip Temperature Sensor; (6)An SPI-Compatible Serial Interface; (7)A Pulse Output with Programmable Frequency; (8)An Interrupt Request Pin (IRQ) and Status Register Provide Early Warning of Register Overflow and Other Conditions.

Diagrams

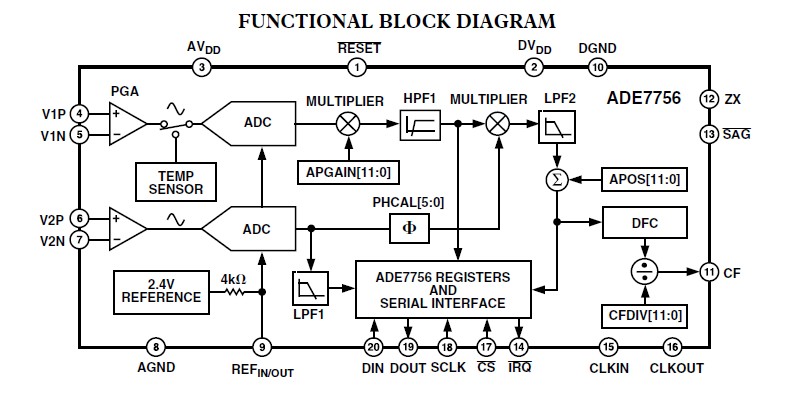

ADE7756AN functional block diagram
