Product Summary
The MAX232CSE+ is line driver/receiver is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where -12V is not available. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX232CSE+ use no external components and are recommended for applications where printed circuit board space is critical.
Parametrics
MAX232CSE+ absolute Maximum Ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)Input Voltages of TIN: -0.3V to (VCC - 0.3V); (3)Input Voltages of RIN (Except MAX220) : 30V; (4)Input Voltages of RIN (MAX220): 25V; (5)Input Voltages of TOUT (Except MAX220) (Note 1) : 15V; (6)Input Voltages of TOUT (MAX220): 13.2V; (7)Output Voltages of TOUT: 15V; (8)Output Voltages of ROUT: -0.3V to (VCC + 0.3V); (9)16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (10)16-Pin Wide SO (derate 9.52mW/℃ above +70℃): 762mW; (11)16-Pin CERDIP (derate 10.00mW/℃ above +70℃): 800mW; (12)Operating Temperature Ranges of MAX232CSE+0℃ to +70℃; (13)Storage Temperature Range: -65℃ to +160℃.
Features
MAX232CSE+ features: (1)Operate from Single +5V Power Supply; (2)Low-Power Receive Mode in Shutdown(MAX223/MAX242); (3)Meet All EIA/TIA-232E and V.28 Specifications; (4)Multiple Drivers and Receivers; (5)3-State Driver and Receiver Outputs; (6)Open-Line Detection (MAX243).

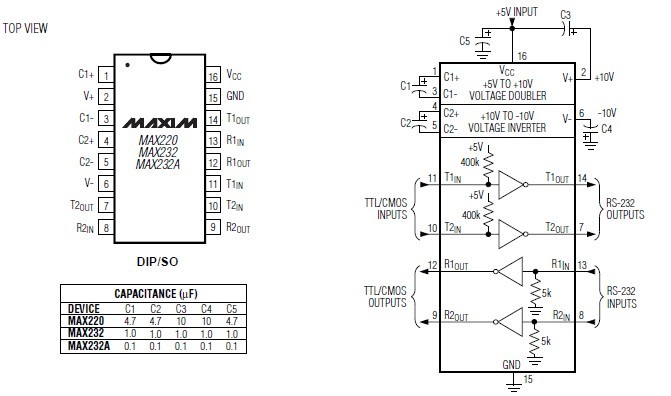

Diagrams
