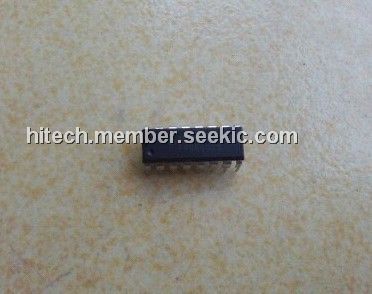

MC145027P

encoder/decoder pair, DIP16, – 0.5 to + 18 V, Very-Low Standby Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~100.00

PartNumber:: MC145027P

Brand:: ON SEMICONDUCTOR - ONS | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jamby's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-21

From Other Seller

Part Number:MC145027P
US $0.10 - 100.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
MOC3063

US $0.32 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

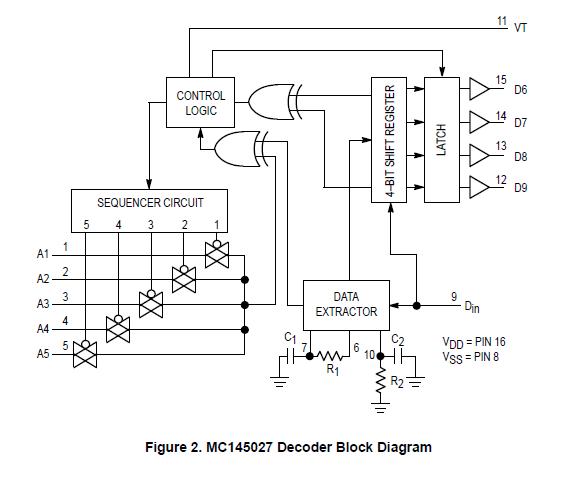

The MC145027P is a encoder/decoder pair in remote control applications. The MC145027P encodes nine lines of information and serially sends this information upon receipt of a transmit enable (TE) signal. The nine lines may be encoded with trinary data (low, high, or open) or binary data (low or high). The words of the MC145027P are transmitted twice per encoding sequence to increase security.

Parametrics

MC145027P absolute maximum ratings: (1)DC Supply Voltage (except SC41343, SC41344): – 0.5 to + 18 V; (2)DC Supply Voltage (SC41343, SC41344 only): – 0.5 to + 10 V; (3)DC Input Voltage: – 0.5 to VDD + 0.5 V; (4)DC Output Voltage: – 0.5 to VDD + 0.5 V; (5)DC Input Current, per Pin: ± 10 mA; (6)DC Output Current, per Pin: ± 10 mA; (7)Power Dissipation, per Package: 500 mW; (8)Storage Temperature: – 65 to + 150 ℃; (9)Lead Temperature, 1 mm from Case for 10 Seconds: 260 ℃.

Features

MC145027P features: (1)Operating Temperature Range: -40 to + 85℃; (2)Very-Low Standby Current for the Encoder: 300 nA Maximum @ 25℃; (3)Interfaces with RF, Ultrasonic, or Infrared Modulators and Demodulators; (4)RC Oscillator, No Crystal Required; (5)High External Component Tolerance; Can Use ±5% Components; (6)Internal Power-On Reset Forces All Decoder Outputs Low; (7)Operating Voltage Range: MC145026 = 2.5 to 18 V*, MC145027, MC145028 = 4.5 to 18 V.
