Product Summary

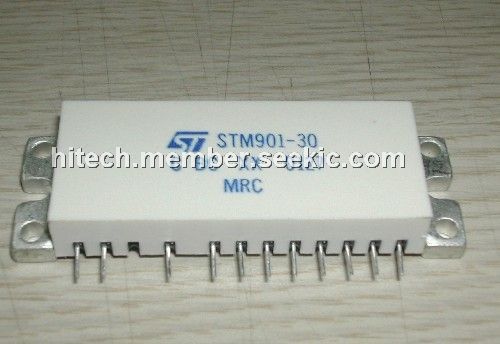

The STM901-30 module is designed for digital cellular radio base station applications in the 860-900 MHz frequency range operating at 26V. The STM901-30 is designed to meet the low distortion, high linearity requirements of modern digital cellular base station equipment.
Parametrics
STM901-30 absolute maximum ratings: (1)V, VD,VC1,VC2, DC Supply Voltage: 28 Vdc; (2)IQ1, Bias Current @ V = 26V, 1st Stage: 0.40 Adc; (3)IQ2, Bias Current @ V = 26V, 2nd Stage: 0.40 Adc; (4)IQ3, Bias Current @ V = 26V, 3rd Stage: 0.54 Adc; (5)IQ4, Bias Current @ V = 26V, 4th Stage: 1.62 Adc; (6)PIN, RF Input Power (POUT < 44.7 dBm PEP): 14 dBm PEP; (7)POUT, RF Output Power (V = 26V): 48 dBm PEP; (8)TSTG, Storage Temperature: - 30 to +100℃; (9)TOPER, Operating Temperature: - 30 to +100℃.
Features
STM901-30 features: (1)linear power amplifier; (2)860 - 900 MHz; (3)26 Volts; (4)input/output 50 OHMS; (5)POUT = +44.7 dBm PEP; (6)GAIN = 35 dB MIN.

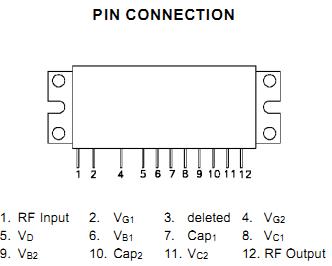

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM901-30 |
Other |
|
Data Sheet |
Negotiable |
|
||||
