Product Summary

The 0805YC474KAT2A is a Multilayer Ceramic Capacitor. Its temperature variation of capacitance is within ±15% from -55℃ to +125℃. This capacitance change is non-linear. The 0805YC474KAT2A covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.

Parametrics

0805YC474KAT2A specifications: (1)Operating Temperature Range: -55℃ to +125℃; (2)Capacitance Within specified tolerance; (3)Dissipation Factor: ≤ 2.5% for ≥ 50V DC rating; ≤ 3.0% for 25V DC ratin; ≤ 3.5% for 16V DC rating; ≤ 5.0% for ≤ 10V DC rating; (4)Insulation Resistance: 100,000MΩ or 1000MΩ - μF, whichever is less; (5)Dielectric Strength: No breakdown or visual defects; (6)Solderability: ≥ 95% of each terminal should be covered with fresh solder.

Diagrams

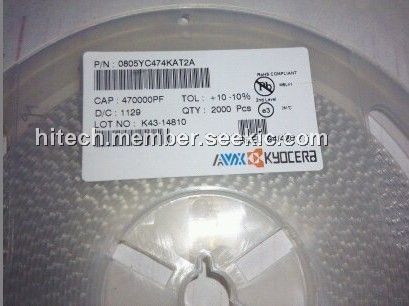

0805YC474KAT2A diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
0805YC474KAT2A
0805YC474KAT2A
AVX
Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 0805 0.47uF 16volts X7R 10%
Data Sheet
0-1: $0.17
1-50: $0.13
50-100: $0.07
100-500: $0.02
