Product Summary

The ES1000C is an electronic measuring transformer for d.c, a.c, and pulsating currents with a high isolation level between primary and secondary circuits.

Parametrics

ES1000C specifications: (1)Weight (kg): 0.46; (2)Operating temperature(℃): -5 to +70; (3)Storage temperature(℃): -25 to +85.

Features

ES1000C electrical characteristics: (1)Nominal current IPN(A eff.): 1000; (2)Supply voltage(V): ±18 to ±24(±5%); (3)Measuring range(Adc): 0 to ±1500; (4)Overload(A): 1000-10ms; (5)Turn ratio Np/Ns: 1/5000; (6)Secondary current ISN at IPN(mA): 200; (7)Accuracy at IPN(%): ±1; (8)Response time(μs): <1; (9)di/dt(A/μs): >100; (10)Band width at -1db(KHz): 0 to >100; (11)No-load current IAO(consumption=IAO+IS)(mA): 12 at UA±18V; (12)Internal secondary resistance at +70℃(Ω): 40; (13)Dielectric strength P/S (kV r.m 50Hz/1mn): 3; (14)Measuring resistor minimum value at the maximum of the operating temperature at ±18V(Ω): 0.

Diagrams

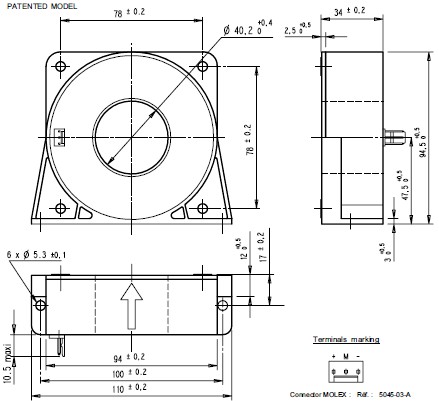

ES1000C dimensions
