Product Summary

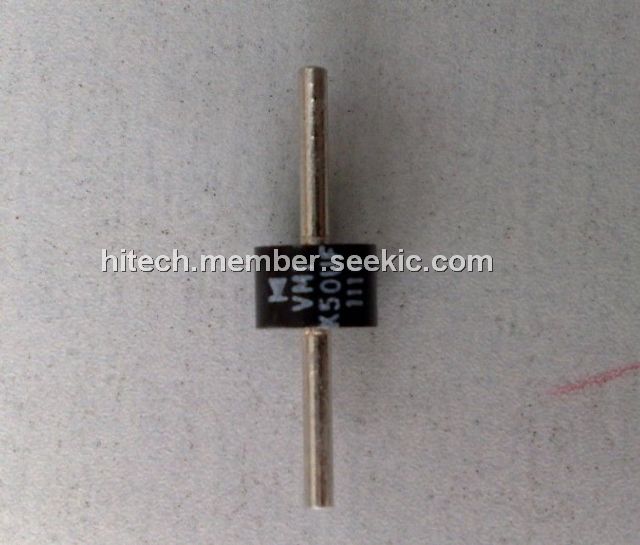

The K50UF is a diode.

Parametrics

K50UF absolute maximum ratings: (1)working reverse voltage:5000V; (2)average rectified current:2.20A(55℃) or 1.10A(100℃); (3)reverse current @ Vrwm:2.0uA(25℃) or 100uA(100℃); (4)forward voltage:10.5V; (5)1 cycle surge current:150A; (6)repetitive surge current:35A; (7)reverse recovery time:100ns; (8)thermal impedance:2℃/W or 4.5℃/W; (9)junction cap.:50pF.

Features

K50UF features: (1)emission coefficient:16; (2)temperature:25℃; (3)diode series resistance:0.15ohm; (4)transit time:100ns; (5)zero-bias junction capacitance:68.46pF; (6)bulk junction potertial:4.27V; (7)grading coefficient:0.5; (8)energy-band gap:1.11V; (9)coefficient for capacitance:0.5; (10)diode breakdown voltage:6000V; (11)diode breakdown current:100uA.

Diagrams

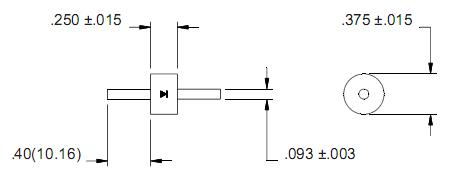

K50UF package dimensions
