Product Summary

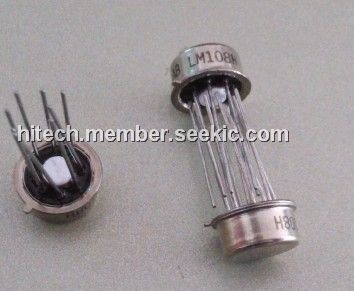

The LM108H is a operational amplifier. The LM108H precision operational amplifier is particularly well suited for high source impedance applications requiring low offset and bias currents as well as low power dissipation. Unlike FET input amplifier, the offset and bias currents of the LM108H do not change significantly with temperature variations. Advanced design, processing and testing techniques make linears LM108H a superior choice over previous device.

Parametrics

LM108H absolute maximum ratings: (1)Supply voltage: ±20V; (2)Differential input current: ±18V; (3)Input voltage: ±15V; (4)Output short circuit duration: Indefinite; (5)Operating temperature range: -55 to 125℃; (6)Shorage temperature range: -65 to 150℃; (7)Lead temperature: 300℃.

Features

LM108H features: (1)Guaranted 200pA max. input offset current; (2)Guaranteed 2nA max. input bias current; (3)Guaranteed 600μA max. supply current; (4)Guaranteed 5μV/℃ max. drift; (5)Wide supply voltage range: ±2V to ± 18V.

Diagrams

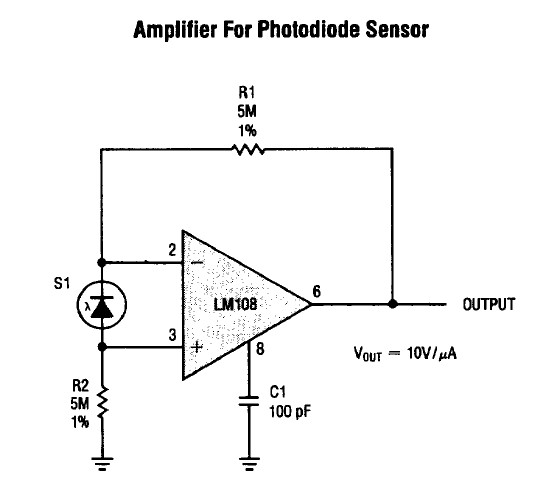

LM108H amplifier for photodiode sensor
