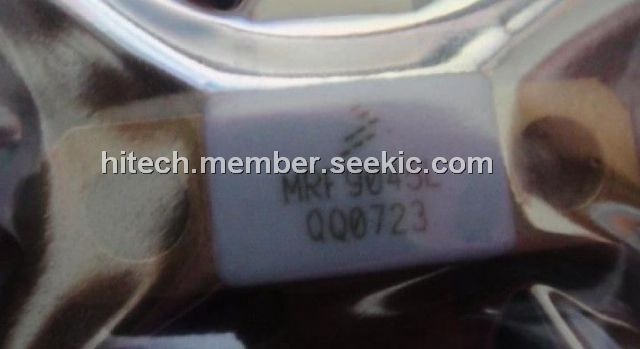

Product Summary

The MRF9045L is a RF Power Field Effect Transistor designed for broadband commercial and industrial applications with frequencies up to 1000 MHz. The high gain and broadband performance of the MRF9045L make it ideal for large-signal, common-source amplifier applications in 28 volt base station equipment.

Parametrics

MRF9045L absolute maximum ratings: (1)Drain-Source Voltage, VDSS: - 0.5, +65 Vdc; (2)Gate-Source Voltage, VGS: - 0.5, +15 Vdc; (3)Total Device Dissipation, PD: 125W; (4)Storage Temperature Range, Tstg: - 65 to +150℃; (5)Case Operating Temperature, TC: 150℃; (6)Operating Junction Temperature, TJ: 200℃.

Features

MRF9045L features: (1)Integrated ESD Protection; (2)Designed for Maximum Gain and Insertion Phase Flatness; (3)Excellent Thermal Stability; (4)Characterized with Series Equivalent Large-Signal Impedance Parameters; (5)Low Gold Plating Thickness on Leads. L Suffix Indicates 40μNominal; (6)RoHS Compliant; (7)In Tape and Reel. R1 Suffix = 500 Units per 32 mm, 13 inch Reel.

Diagrams

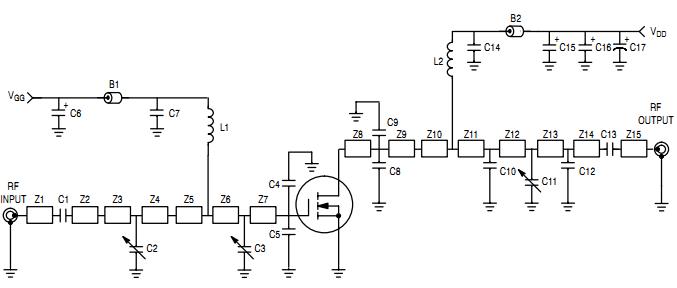

MRF9045L test circuit
