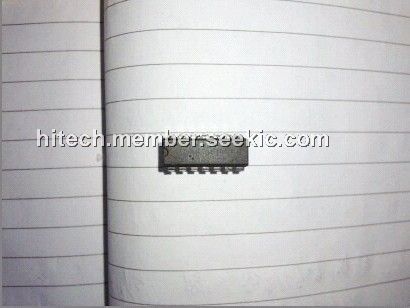

RC4194N

Dual tracking voltage regulator, DIP-14, ±200 mA, 3W power dissipations, ±35 V max

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~1.00

PartNumber:: RC4194N

Brand:: Raytheon Company - Raytheon | Pack: DIP | D/C: 99+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. jamby's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-13

From Other Seller

Part Number:RC4194N
US $0.70 - 1.00
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
PIC16F917-I/P(PIC16F917-IP)

US $1.60 - 2.20 / Piece
(0) Remove
Quantity:

piece

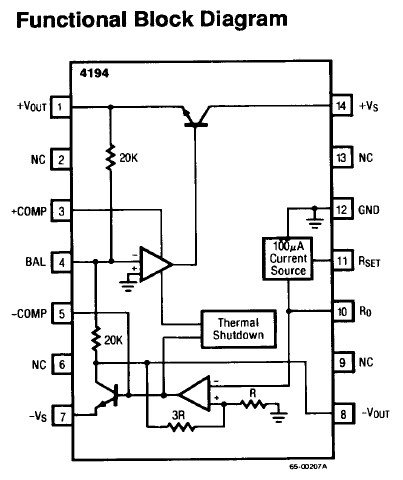

Product Summary

The RC4194N is a dual polarity tracking regulator designed to provide balanced or unbalanced positive and negative output voltages at currents to 200 mA. A single external resistor adjustment can be used to change both outputs between the limits of ±50 mV and ±42V. The RC4194N is designed for local “on-card” regulation, eliminating distribution problems associated with singlepoint regulation. To simplify application the regulator RC4194N requires a minimum number of external parts. The RC4194N is available in three package types to accommodate various power requirements. The K (TO-66) power package can dissipate up to 3W at TA = +25℃. The D 14-pin dual in-line will dissipate up to 1W and the N 14-pin dual in-line will dissipate up to 625 mW.

Parametrics

RC4194N absolute maximum ratings: (1)Supply Voltage: ±35 V max; (2)Supply Input to Output Voltage Differential: ±35 V max; (3)Load Current: PDIP: 100 mA max; CerDIP: 150 mA max; TO-66 Metal Can: 250 mA max; (4)PDTA < 50℃: PDIP: 468 mW max; CerDIP: 1042 mW max; TO-66 Metal Can: 2381 mW max; (5)Operating Temperature (Tj): 0 to 70 ℃; (6)Storage Temperature: -65 to 150 ℃; (7)Junction Temperature: PDIP: 125 ℃ max; CerDIP: 175 ℃ max; TO-66 Metal Can: 150 ℃ max; (8)Lead Soldering Temperature (60 seconds): 300 ℃ max; (9)For TA > 50℃ Derate: at TO-66 Metal Can: 23.81 mW/℃; at PDIP: 6.25 mW/℃; at CerDIP: 8.38 mW/℃.

Features

RC4194N features: (1)Simultaneously adjustable outputs with one resistor to ±42V; (2)Load current: ±200 mA with 0.04% load regulation; (3)Internal thermal shutdown at TJ = +175℃; (4)External balance for ±VOUT unbalancing; (5)3W power dissipations.
