Product Summary

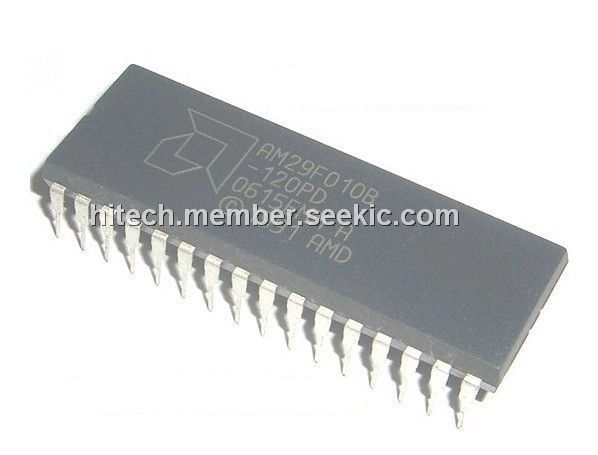

The AM29F010B-120PD is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The AM29F010B-120PD is offered in 32-pin PDIP, PLCC and TSOP packages. The byte-wide data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F010B-120PD can also be programmed or erased in standard EPROM programmers. This device is manufactured using AMDs 0.32 μm process technology, and offers all the features and benefits of the Am29F010 and Am29F010A.

Parametrics

AM29F010B-120PD absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to +7.0 V; (4)A9: –2.0 V to +13.0 V; (5)All other pins: –2.0 V to +7.0 V; (6)Output Short Circuit Current: 200 mA.

Features

AM29F010B-120PD features: (1)Single power supply operation: 5.0 V ± 10% for read, erase, and program operations; simplifies system-level power requirements; (2)High performance: 45 ns maximum access time; (3)Low power consumption: 12 mA typical active read current; 30 mA typical program/erase current; <1 μA typical standby current; (4)Flexible sector architecture: Eight 16 Kbyte sectors; Any combinatioof sectors cabe erased; Supports full chip erase; (5)Sector protection: Hardware-based feature that disables/reenables program and erase operations iany combinatioof sectors; Sector protection/unprotectiocabe implemented using standard PROM programming equipment; (6)Embedded Algorithms: Embedded Erase algorithm automatically pre-programs and erases the chip or any combinatioof designated sector; Embedded Program algorithm automatically programs and verifies data at specified address; (7)Erase Suspend/Resume: Supports reading data from a sector not being erased; (8)Minimum 1 millioerase cycles guaranteed per sector; (9)20-year data retentioat 125℃: Reliable operatiofor the life of the system.

Diagrams

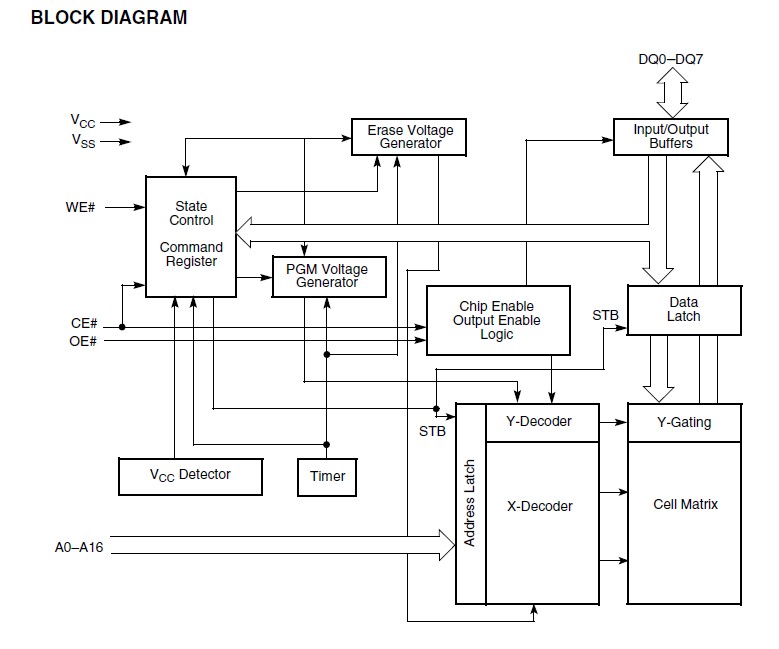

AM29F010B-120PD block diagram
