Product Summary
The DEA1X3A470JC1B is a high voltage ceramic capacitor. It is ideal for use as the ballast in backlighting inverters for liquid crystal display. The DEA1X3A470JC1B is also ideal for use on high-frequency pulse circuits such as a horizontal resonance circuit for CTV and snubber circuits for switching power supplies.
Parametrics
DEA1X3A470JC1B specifications: (1)DC Rated Voltage (V): 1000; (2)Capacitance (pF): 47±5%; (3)Body Dia. D (mm): 4.5; (4)Lead Spacing F (mm): 5.0; (5)Body Thickness T (mm): 4.0; (6)Lead Package Long Bulk: C1B; (7)Lead Package Short Bulk: D1B; (8)Lead Package Taping: P2A.
Features
DEA1X3A470JC1B features: (1)Temperature compensating type ceramics realize lower heat dissipation than DEH/DES series; (2)Operating temperature range is guaranteed up to 125 degrees C; (3)Coated with flame-retardant epoxy resin(equivalent to UL94V-0 standard). Please contact us when a halogen-free product is necessary. * Cl=900ppm max., Br=900ppm max. and Cl+Br=1500ppm max.; (4)Taping available for automatic insertion.

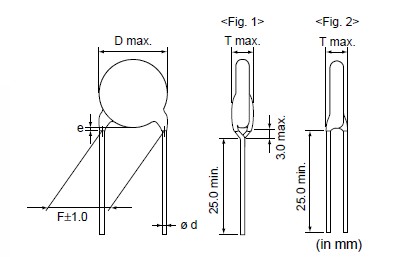

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

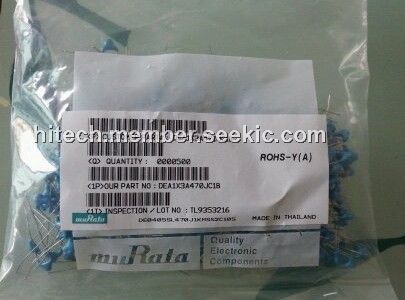

 DEA1X3A470JC1B |
Murata |
Ceramic Disc Capacitors 47pF +/-5% DC1k volt |
Data Sheet |
|
|
||||||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||||||
 |

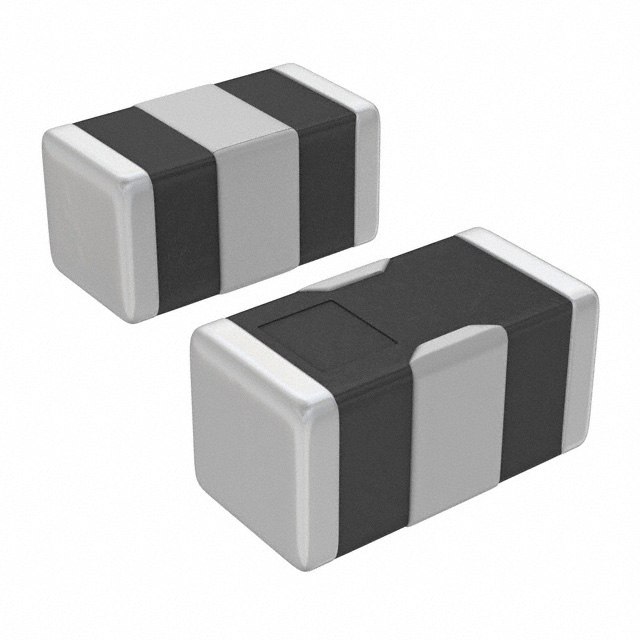

DEA101910DT-6004A1 |
TDK |
Signal Conditioning Filter Phase Shiftr Delay Line DCS-PCS |
Data Sheet |
|
|
||||||||||||||||||
 |
DEA101910DT-6005A2 |
|
DELAY LINE 1.8GHZ 60DEG 0402 SMD |
Data Sheet |
|
|
||||||||||||||||||
|
DEA101910DT-6016A1 |
TDK |
Signal Conditioning Filter Phase Shiftr Delay Line DCS-PCS |
Data Sheet |
|
|
||||||||||||||||||
|
DEA101910DT-6017A1 |
TDK |
Signal Conditioning Filter Phase Shiftr Delay Line DCS-PCS |
Data Sheet |
|
|
||||||||||||||||||
 |

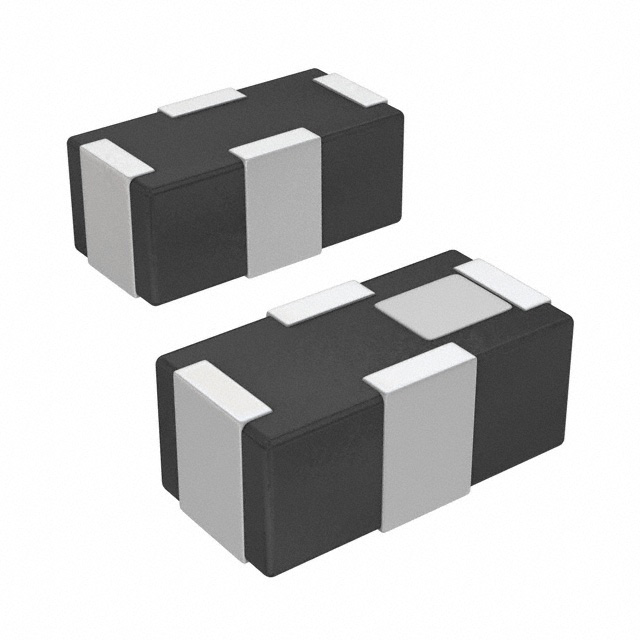

DEA102500LT-6307A1 |
|
