Product Summary
The EPM3064ALC44-10N is a low–cost, high–performance Programmable Logic device, which is based on the Altera MAX architecture. Fabricated with advanced CMOS technology, the EPM3064ALC44-10N operates with a 3.3-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz.
Parametrics
EPM3064ALC44-10N absolute maximum ratings: (1)Supply voltage With respect to ground: –0.5 to 4.6 V; (2)DC input voltage: –2.0 to 5.75 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150 ℃; (5)Ambient temperature Under bias: –65 to 135 ℃; (6)Junction temperature PQFP and TQFP packages, under bias: 135 ℃.
Features
EPM3064ALC44-10N features: (1)High.performance, low.cost CMOS EEPROM.based programmable logic devices (PLDs) built on a MAXR architecture; (2)3.3-V in-system programmability (ISP) through the built.in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability: ISP circuitry compliant with IEEE Std. 1532; (3)Built.in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (4)Enhanced ISP features: Enhanced ISP algorithm for faster programming, ISP_Done bit to ensure complete programming, Pull-up resistor on I/O pins during in.system programming.

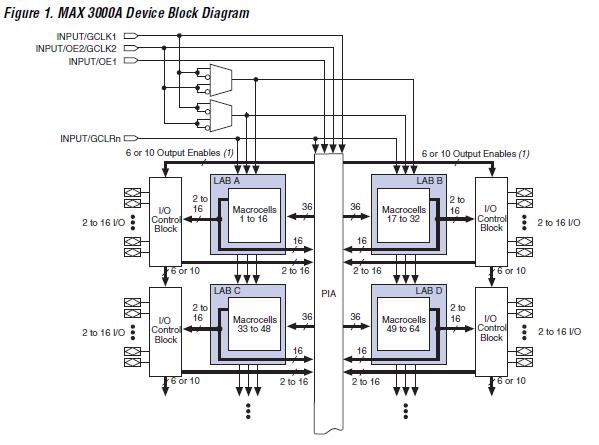

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPM3064ALC44-10N |
|
IC MAX 3000A CPLD 64 44-PLCC |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EPM3 |
Meterman |
Test Accessories - Other COMBINATION PHASE & MOTOR ROT TESTER |
Data Sheet |
Negotiable |
|
||||||
|
EPM3032ALC44-10 |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
|
EPM3032ALC44-10N |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
|
EPM3032ALC44-4 |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
|
EPM3032ALC44-4N |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
|
EPM3032ALC44-7 |
|
IC MAX 3000A CPLD 32 44-PLCC |
Data Sheet |
|
|
||||||
