Product Summary

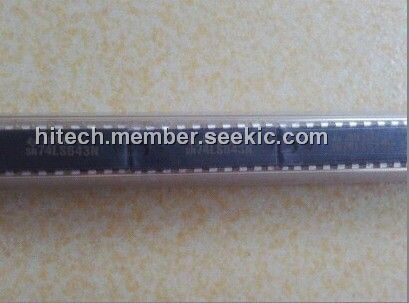

The SN74LS643N is an octal bus-line transceiver.

Parametrics

SN74LS643N Specification: (1)VOL Max. (Drvr)=0.5 @IOL (A)=24m; (2)t(PLH) Maximum (S)=15n; (3)Input Threshold Voltage (-)(V)=.60; (4)Input Threshold Voltage (+)(V)=2.0; (5)VOL Max. (Rcvr)=0.5; (6)VOH Min (Rcvr)=2.0; (7)Vsup(-) Nom.(V) Neg.Sup.Volt.=0.0; (8)Vsup(+) Nom.(V) Pos.Sup.Volt.=5.0; (9)Pins=20.
