Product Summary
The MRFIC1830DMR2 is a single pole, double throw reflective antenna switch featuring low insertion loss and high power handling capability in a low-cost SOIC-8 package. The integrated circuit requires no off-chip matching and provides for easy control circuit interface. The high power handling capability allows application in higher power wireless systems than traditional GaAs antenna switches.
Parametrics
MRFIC1830DMR2 absolute maximum ratings: (1)Supply Voltage: 10 Vdc; (2)Supply Voltage Difference: – VSS 8 Vdc; (3)RF Input Power: 33 dBm; (4)Switch Control Voltage: VDD +1, VSS –1 Vdc; (5)Storage Temperature Range: – 65 to +150 ℃; (6)Operating Ambient Temperature: – 30 to + 85 ℃.
Features
MRFIC1830DMR2 features: (1)Usable Frequency Range 1.5 to 2.5 GHz; (2)High 1.0 dB Compression Point = 29 dBm (Typ); (3)Low Transmit Insertion Loss = 0.75 dB (Typ); (4)High Transmit to Receive Isolation = 22 dB (Typ); (5)Single Control Pin for Easy Switching Signal Interface; (6)Low Current Drain = 300 mA (Typ) in TX, 45 mA (Typ) in RX; (7)Low Cost Surface Mount Plastic Package; (8)Order MRFIC1801R2 for Tape and Reel. R2 Suffix = 2,500 Units per 12 mm, 13 inch Reel.

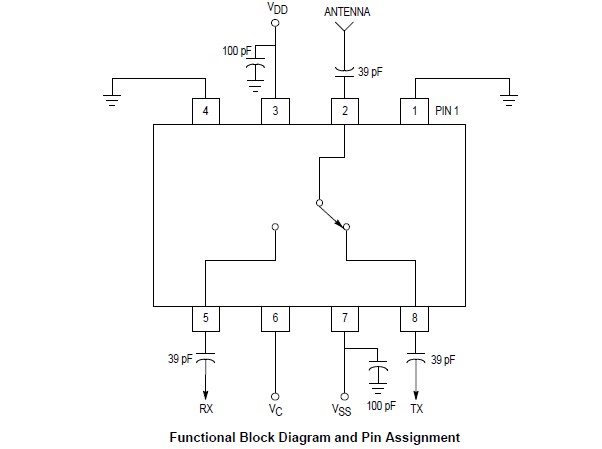

Diagrams
 |
